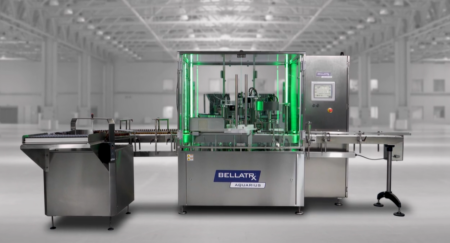

The Magna Capper is an automatic inline capping machine designed specifically for large containers and closures. It applies and torques closures onto large containers consistently at speeds up to 60 cpm.
Capping Machine for Large Containers and Closures
The Magna Capper machine is an automatic inline capping solution designed specifically for large containers and closures. It applies and torques closures onto large containers consistently at speeds up to 60 cpm.
With an integrated 12-foot conveyor and heavy-duty container indexing and clamping system, the Magna Capper’s oversized components and robust construction make it the ideal capping machine to suit industries with large containers and caps. It’s the perfect solution for applications involving nutritional powders, personal care products, diagnostic chemicals, adhesives and paints, food, and more.
The operator interfaces touch screen, servo torque application, and intuitive controls make the Magna Capper easy to set up and run, even for first-time users.
Features & Benefits:
- Chuck design squarely applies closures to containers
- Reject rates typically 0.5% or less
- Consistent torque application onto closures
- No cross-threaded or un-torqued containers leaving the system
- Quick changeover with repeatable set-ups
Standard Specifications:
- Speeds up to 60 cpm
- 22 – 120mm closure range with elevator
- 15 – 63mm closure range with a bowl
- Up to 8” W. or 8” Ø x 16” H. container range
- 5 – 50 in. lbs. application torque
